pYSFReflector

This is a YSF Reflector implemented in python3, mainly compatible with g4klx reflector.

Additional Features

Enhanced Blocking List

With the enhanced blocking list you are able to mute calls based on

  • callsign of sender
  • callsign of gateway used
  • ip-address of gateway

Blocking On Regular Expression Callsign Check

It is also possible to use (by default enabled in the YSFReflector.ini) a callsign check based on a regular expression to check the callsign plausibility in callsign-format and length.

The result of this check can be overdriven by a whitelist-entry in the blocklist (for example: N0CALL is blocked by default by this expression but could be allowed for special bridging situations).

Muting Matrix

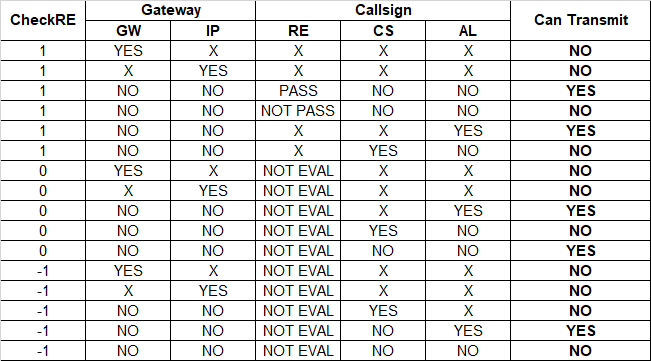

Here you see a matrix documenting the behavior of the blocking-lists and configuration of regular expression (RE)-check:

Muting-Matrix

Within this table following descriptions for the cell-values should help understanding the table:

  • X: Any value
  • YES: set and matches with callsign/gateway/ip-address
  • NO: not set
  • 1: check via RE enabled, normal operation
  • 0: check via RE disabled, but passes everything
  • -1: check via RE disabled, but only pass whitelist

Avoiding Parallel Incomming Transmissions

There is also a functionality implemented that prohibits parallel transmissions that can happen if two senders transmit at the same time. Here the principle 'first-comes-first-serves' is realized, so the second station in time will just be muted to not disturb the audio.

Easy Installation And Upgrade

Depending on your used operating system and python3-installation you just have to take care that following libraries are installed:

  • bisect
  • configparser
  • datetime
  • os
  • queue
  • re
  • signal
  • socket
  • struct
  • sys
  • threading
  • time

In most installations this packages are already installed, otherwise you easily can install them with your system-package-manager (for example Debian: apt) or you use pip3 install -command.

The configuration file (YSFReflector.ini) is based on the origin YSFReflector.ini of G4KLX's YSFReflector but with added new configuration-items. So If you know the old reflector-software - configuring this one would be straight forward.
