AM demod: removed UDP/RTP copy audio entirely

This commit is contained in:
f4exb 2018-03-28 09:58:45 +02:00
parent 3b882e78b4
commit 28cb4e7c3c
16 changed files with 5 additions and 198 deletions
Show Stats Download Patch File Download Diff File Expand all files Collapse all files

BIN

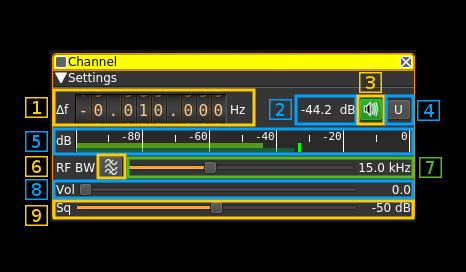

doc/img/AMDemod_plugin.png
View File

Binary file not shown.
Side by Side Swipe Overlay

Before

Width:  |  Height:  |  Size: 18 KiB

After

Width:  |  Height:  |  Size: 17 KiB

BIN
doc/img/AMDemod_plugin.xcf
View File

Binary file not shown.

30
plugins/channelrx/demodam/amdemod.cpp
View File

@ -65,8 +65,6 @@ AMDemod::AMDemod(DeviceSourceAPI *deviceAPI) :
DSPEngine::instance()->getAudioDeviceManager()->addAudioSink(&m_audioFifo, getInputMessageQueue());
m_audioSampleRate = DSPEngine::instance()->getAudioDeviceManager()->getOutputSampleRate();
m_audioNetSink = new AudioNetSink(0); // parent thread allocated dynamically - no RTP
m_audioNetSink->setDestination(m_settings.m_udpAddress, m_settings.m_udpPort);
applyChannelSettings(m_inputSampleRate, m_inputFrequencyOffset, true);
applySettings(m_settings, true);
@ -80,7 +78,6 @@ AMDemod::AMDemod(DeviceSourceAPI *deviceAPI) :
AMDemod::~AMDemod()
{
DSPEngine::instance()->getAudioDeviceManager()->removeAudioSink(&m_audioFifo);
delete m_audioNetSink;
m_deviceAPI->removeChannelAPI(this);
m_deviceAPI->removeThreadedSink(m_threadedChannelizer);
delete m_threadedChannelizer;
@ -194,7 +191,6 @@ bool AMDemod::handleMessage(const Message& cmd)
BasebandSampleSink::MsgThreadedSink& cfg = (BasebandSampleSink::MsgThreadedSink&) cmd;
const QThread *thread = cfg.getThread();
qDebug("AMDemod::handleMessage: BasebandSampleSink::MsgThreadedSink: %p", thread);
m_audioNetSink->moveToThread(const_cast<QThread*>(thread)); // use the thread for udp sinks
return true;
}
else if (DSPSignalNotification::match(cmd))
@ -273,9 +269,6 @@ void AMDemod::applySettings(const AMDemodSettings& settings, bool force)
<< " m_squelch: " << settings.m_squelch
<< " m_audioMute: " << settings.m_audioMute
<< " m_bandpassEnable: " << settings.m_bandpassEnable
<< " m_copyAudioToUDP: " << settings.m_copyAudioToUDP
<< " m_udpAddress: " << settings.m_udpAddress
<< " m_udpPort: " << settings.m_udpPort
<< " m_audioDeviceName: " << settings.m_audioDeviceName
<< " force: " << force;
@ -295,12 +288,6 @@ void AMDemod::applySettings(const AMDemodSettings& settings, bool force)
m_squelchLevel = pow(10.0, settings.m_squelch / 10.0);
}
if ((m_settings.m_udpAddress != settings.m_udpAddress)
|| (m_settings.m_udpPort != settings.m_udpPort) || force)
{
m_audioNetSink->setDestination(settings.m_udpAddress, settings.m_udpPort);
}
if ((settings.m_audioDeviceName != m_settings.m_audioDeviceName) || force)
{
AudioDeviceManager *audioDeviceManager = DSPEngine::instance()->getAudioDeviceManager();
@ -361,9 +348,6 @@ int AMDemod::webapiSettingsPutPatch(
if (channelSettingsKeys.contains("audioMute")) {
settings.m_audioMute = response.getAmDemodSettings()->getAudioMute() != 0;
}
if (channelSettingsKeys.contains("copyAudioToUDP")) {
settings.m_copyAudioToUDP = response.getAmDemodSettings()->getCopyAudioToUdp() != 0;
}
if (channelSettingsKeys.contains("inputFrequencyOffset"))
{
settings.m_inputFrequencyOffset = response.getAmDemodSettings()->getInputFrequencyOffset();
@ -381,12 +365,6 @@ int AMDemod::webapiSettingsPutPatch(
if (channelSettingsKeys.contains("title")) {
settings.m_title = *response.getAmDemodSettings()->getTitle();
}
if (channelSettingsKeys.contains("udpAddress")) {
settings.m_udpAddress = *response.getAmDemodSettings()->getUdpAddress();
}
if (channelSettingsKeys.contains("udpPort")) {
settings.m_udpPort = response.getAmDemodSettings()->getUdpPort();
}
if (channelSettingsKeys.contains("volume")) {
settings.m_volume = response.getAmDemodSettings()->getVolume();
}
@ -429,12 +407,10 @@ int AMDemod::webapiReportGet(
void AMDemod::webapiFormatChannelSettings(SWGSDRangel::SWGChannelSettings& response, const AMDemodSettings& settings)
{
response.getAmDemodSettings()->setAudioMute(settings.m_audioMute ? 1 : 0);
response.getAmDemodSettings()->setCopyAudioToUdp(settings.m_copyAudioToUDP ? 1 : 0);
response.getAmDemodSettings()->setInputFrequencyOffset(settings.m_inputFrequencyOffset);
response.getAmDemodSettings()->setRfBandwidth(settings.m_rfBandwidth);
response.getAmDemodSettings()->setRgbColor(settings.m_rgbColor);
response.getAmDemodSettings()->setSquelch(settings.m_squelch);
response.getAmDemodSettings()->setUdpPort(settings.m_udpPort);
response.getAmDemodSettings()->setVolume(settings.m_volume);
response.getAmDemodSettings()->setBandpassEnable(settings.m_bandpassEnable ? 1 : 0);
@ -443,12 +419,6 @@ void AMDemod::webapiFormatChannelSettings(SWGSDRangel::SWGChannelSettings& respo
} else {
response.getAmDemodSettings()->setTitle(new QString(settings.m_title));
}
if (response.getAmDemodSettings()->getUdpAddress()) {
*response.getAmDemodSettings()->getUdpAddress() = settings.m_udpAddress;
} else {
response.getAmDemodSettings()->setUdpAddress(new QString(settings.m_udpAddress));
}
}
void AMDemod::webapiFormatChannelReport(SWGSDRangel::SWGChannelReport& response)

9
plugins/channelrx/demodam/amdemod.h
View File

@ -28,7 +28,6 @@
#include "dsp/agc.h"
#include "dsp/bandpass.h"
#include "audio/audiofifo.h"
#include "audio/audionetsink.h"
#include "util/message.h"
#include "amdemodsettings.h"
@ -168,7 +167,6 @@ private:
AudioVector m_audioBuffer;
uint32_t m_audioBufferFill;
AudioFifo m_audioFifo;
AudioNetSink *m_audioNetSink;
static const int m_udpBlockSize;
@ -227,18 +225,11 @@ private:
Real attack = (m_squelchCount - 0.05f * m_audioSampleRate) / (0.05f * m_audioSampleRate);
sample = demod * attack * (m_audioSampleRate/24) * m_settings.m_volume;
if (m_settings.m_copyAudioToUDP) {
m_audioNetSink->write(demod * attack * 32768.0f);
}
m_squelchOpen = true;
}
else
{
sample = 0;
if (m_settings.m_copyAudioToUDP) {
m_audioNetSink->write(0);
}
m_squelchOpen = false;
}

16
plugins/channelrx/demodam/amdemodgui.cpp
View File

@ -173,12 +173,6 @@ void AMDemodGUI::on_audioMute_toggled(bool checked)
applySettings();
}
void AMDemodGUI::on_copyAudioToUDP_toggled(bool checked)
{
m_settings.m_copyAudioToUDP = checked;
applySettings();
}
void AMDemodGUI::onWidgetRolled(QWidget* widget __attribute__((unused)), bool rollDown __attribute__((unused)))
{
/*
@ -194,14 +188,11 @@ void AMDemodGUI::onMenuDialogCalled(const QPoint &p)
dialog.exec();
m_settings.m_inputFrequencyOffset = m_channelMarker.getCenterFrequency();
m_settings.m_udpAddress = m_channelMarker.getUDPAddress(),
m_settings.m_udpPort = m_channelMarker.getUDPSendPort(),
m_settings.m_rgbColor = m_channelMarker.getColor().rgb();
m_settings.m_title = m_channelMarker.getTitle();
setWindowTitle(m_settings.m_title);
setTitleColor(m_settings.m_rgbColor);
displayUDPAddress();
applySettings();
}
@ -296,7 +287,6 @@ void AMDemodGUI::displaySettings()
setTitleColor(m_settings.m_rgbColor);
setWindowTitle(m_channelMarker.getTitle());
displayUDPAddress();
blockApplySettings(true);
@ -314,16 +304,10 @@ void AMDemodGUI::displaySettings()
ui->audioMute->setChecked(m_settings.m_audioMute);
ui->bandpassEnable->setChecked(m_settings.m_bandpassEnable);
ui->copyAudioToUDP->setChecked(m_settings.m_copyAudioToUDP);
blockApplySettings(false);
}
void AMDemodGUI::displayUDPAddress()
{
ui->copyAudioToUDP->setToolTip(QString("Copy audio output to UDP %1:%2").arg(m_settings.m_udpAddress).arg(m_settings.m_udpPort));
}
void AMDemodGUI::leaveEvent(QEvent*)
{
m_channelMarker.setHighlighted(false);

2
plugins/channelrx/demodam/amdemodgui.h
View File

@ -59,7 +59,6 @@ private:
void blockApplySettings(bool block);
void applySettings(bool force = false);
void displaySettings();
void displayUDPAddress();
void leaveEvent(QEvent*);
void enterEvent(QEvent*);
@ -71,7 +70,6 @@ private slots:
void on_volume_valueChanged(int value);
void on_squelch_valueChanged(int value);
void on_audioMute_toggled(bool checked);
void on_copyAudioToUDP_toggled(bool copy);
void onWidgetRolled(QWidget* widget, bool rollDown);
void onMenuDialogCalled(const QPoint& p);
void handleInputMessages();

13
plugins/channelrx/demodam/amdemodgui.ui
View File

@ -177,19 +177,6 @@
</property>
</widget>
</item>
<item>
<widget class="ButtonSwitch" name="copyAudioToUDP">
<property name="toolTip">
<string>Copy audio to UDP</string>
</property>
<property name="text">
<string>U</string>
</property>
<property name="checkable">
<bool>true</bool>
</property>
</widget>
</item>
</layout>
</item>
<item>

3
plugins/channelrx/demodam/amdemodsettings.cpp
View File

@ -35,9 +35,6 @@ void AMDemodSettings::resetToDefaults()
m_volume = 2.0;
m_audioMute = false;
m_bandpassEnable = false;
m_copyAudioToUDP = false;
m_udpAddress = "127.0.0.1";
m_udpPort = 9999;
m_rgbColor = QColor(255, 255, 0).rgb();
m_title = "AM Demodulator";
m_audioDeviceName = AudioDeviceManager::m_defaultDeviceName;

3
plugins/channelrx/demodam/amdemodsettings.h
View File

@ -29,9 +29,6 @@ struct AMDemodSettings
Real m_volume;
bool m_audioMute;
bool m_bandpassEnable;
bool m_copyAudioToUDP;
QString m_udpAddress;
quint16 m_udpPort;
quint32 m_rgbColor;
QString m_title;
Serializable *m_channelMarker;

10
plugins/channelrx/demodam/readme.md
View File

@ -16,15 +16,11 @@ Use the wheels to adjust the frequency shift in Hz from the center frequency of
Average total power in dB relative to a +/- 1.0 amplitude signal received in the pass band.
<h3>3: Audio mute</h3>
<h3>3: Audio mute and audio output select</h3>
Use this button to toggle audio mute for this channel. The button will light up in green if the squelch is open. This helps identifying which channels are active in a multi-channel configuration.
Left click on this button to toggle audio mute for this channel. The button will light up in green if the squelch is open. This helps identifying which channels are active in a multi-channel configuration.
<h3>4: UDP output</h3>
Copies audio output to UDP. Audio is set at fixed level and is muted by the mute button (13) and squelch (9) is also applied. Output is mono S16LE samples.
UDP address and send port are specified in the basic channel settings. See: [here](https://github.com/f4exb/sdrangel/blob/master/sdrgui/readme.md#6-channels)
If you right click on it it will open a dialog to select the audio output device.
<h3>5: Level meter in dB</h3>

11
sdrbase/resources/webapi/doc/html2/index.html
View File

@ -744,15 +744,6 @@ margin-bottom: 20px;
"type" : "integer",
"description" : "use bandpass filter (1 for yes, 0 for no)"
},
"copyAudioToUDP" : {
"type" : "integer"
},
"udpAddress" : {
"type" : "string"
},
"udpPort" : {
"type" : "integer"
},
"rgbColor" : {
"type" : "integer"
},
@ -18054,7 +18045,7 @@ except ApiException as e:
</div>
<div id="generator">
<div class="content">
Generated 2018-03-28T09:34:59.109+02:00
Generated 2018-03-28T09:46:11.248+02:00
</div>
</div>
</div>

6
sdrbase/resources/webapi/doc/swagger/include/AMDemod.yaml
View File

@ -21,12 +21,6 @@ AMDemodSettings:
bandpassEnable:
description: use bandpass filter (1 for yes, 0 for no)
type: integer
copyAudioToUDP:
type: integer
udpAddress:
type: string
udpPort:
type: integer
rgbColor:
type: integer
title:

6
swagger/sdrangel/api/swagger/include/AMDemod.yaml
View File

@ -21,12 +21,6 @@ AMDemodSettings:
bandpassEnable:
description: use bandpass filter (1 for yes, 0 for no)
type: integer
copyAudioToUDP:
type: integer
udpAddress:
type: string
udpPort:
type: integer
rgbColor:
type: integer
title:

11
swagger/sdrangel/code/html2/index.html
View File

@ -744,15 +744,6 @@ margin-bottom: 20px;
"type" : "integer",
"description" : "use bandpass filter (1 for yes, 0 for no)"
},
"copyAudioToUDP" : {
"type" : "integer"
},
"udpAddress" : {
"type" : "string"
},
"udpPort" : {
"type" : "integer"
},
"rgbColor" : {
"type" : "integer"
},
@ -18054,7 +18045,7 @@ except ApiException as e:
</div>
<div id="generator">
<div class="content">
Generated 2018-03-28T09:34:59.109+02:00
Generated 2018-03-28T09:46:11.248+02:00
</div>
</div>
</div>

65
swagger/sdrangel/code/qt5/client/SWGAMDemodSettings.cpp
View File

@ -40,12 +40,6 @@ SWGAMDemodSettings::SWGAMDemodSettings() {
m_audio_mute_isSet = false;
bandpass_enable = 0;
m_bandpass_enable_isSet = false;
copy_audio_to_udp = 0;
m_copy_audio_to_udp_isSet = false;
udp_address = nullptr;
m_udp_address_isSet = false;
udp_port = 0;
m_udp_port_isSet = false;
rgb_color = 0;
m_rgb_color_isSet = false;
title = nullptr;
@ -70,12 +64,6 @@ SWGAMDemodSettings::init() {
m_audio_mute_isSet = false;
bandpass_enable = 0;
m_bandpass_enable_isSet = false;
copy_audio_to_udp = 0;
m_copy_audio_to_udp_isSet = false;
udp_address = new QString("");
m_udp_address_isSet = false;
udp_port = 0;
m_udp_port_isSet = false;
rgb_color = 0;
m_rgb_color_isSet = false;
title = new QString("");
@ -91,11 +79,6 @@ SWGAMDemodSettings::cleanup() {
if(udp_address != nullptr) {
delete udp_address;
}
if(title != nullptr) {
delete title;
}
@ -124,12 +107,6 @@ SWGAMDemodSettings::fromJsonObject(QJsonObject &pJson) {
::SWGSDRangel::setValue(&bandpass_enable, pJson["bandpassEnable"], "qint32", "");
::SWGSDRangel::setValue(&copy_audio_to_udp, pJson["copyAudioToUDP"], "qint32", "");
::SWGSDRangel::setValue(&udp_address, pJson["udpAddress"], "QString", "QString");
::SWGSDRangel::setValue(&udp_port, pJson["udpPort"], "qint32", "");
::SWGSDRangel::setValue(&rgb_color, pJson["rgbColor"], "qint32", "");
::SWGSDRangel::setValue(&title, pJson["title"], "QString", "QString");
@ -168,15 +145,6 @@ SWGAMDemodSettings::asJsonObject() {
if(m_bandpass_enable_isSet){
obj->insert("bandpassEnable", QJsonValue(bandpass_enable));
}
if(m_copy_audio_to_udp_isSet){
obj->insert("copyAudioToUDP", QJsonValue(copy_audio_to_udp));
}
if(udp_address != nullptr && *udp_address != QString("")){
toJsonValue(QString("udpAddress"), udp_address, obj, QString("QString"));
}
if(m_udp_port_isSet){
obj->insert("udpPort", QJsonValue(udp_port));
}
if(m_rgb_color_isSet){
obj->insert("rgbColor", QJsonValue(rgb_color));
}
@ -247,36 +215,6 @@ SWGAMDemodSettings::setBandpassEnable(qint32 bandpass_enable) {
this->m_bandpass_enable_isSet = true;
}
qint32
SWGAMDemodSettings::getCopyAudioToUdp() {
return copy_audio_to_udp;
}
void
SWGAMDemodSettings::setCopyAudioToUdp(qint32 copy_audio_to_udp) {
this->copy_audio_to_udp = copy_audio_to_udp;
this->m_copy_audio_to_udp_isSet = true;
}
QString*
SWGAMDemodSettings::getUdpAddress() {
return udp_address;
}
void
SWGAMDemodSettings::setUdpAddress(QString* udp_address) {
this->udp_address = udp_address;
this->m_udp_address_isSet = true;
}
qint32
SWGAMDemodSettings::getUdpPort() {
return udp_port;
}
void
SWGAMDemodSettings::setUdpPort(qint32 udp_port) {
this->udp_port = udp_port;
this->m_udp_port_isSet = true;
}
qint32
SWGAMDemodSettings::getRgbColor() {
return rgb_color;
@ -308,9 +246,6 @@ SWGAMDemodSettings::isSet(){
if(m_volume_isSet){ isObjectUpdated = true; break;}
if(m_audio_mute_isSet){ isObjectUpdated = true; break;}
if(m_bandpass_enable_isSet){ isObjectUpdated = true; break;}
if(m_copy_audio_to_udp_isSet){ isObjectUpdated = true; break;}
if(udp_address != nullptr && *udp_address != QString("")){ isObjectUpdated = true; break;}
if(m_udp_port_isSet){ isObjectUpdated = true; break;}
if(m_rgb_color_isSet){ isObjectUpdated = true; break;}
if(title != nullptr && *title != QString("")){ isObjectUpdated = true; break;}
}while(false);

18
swagger/sdrangel/code/qt5/client/SWGAMDemodSettings.h
View File

@ -60,15 +60,6 @@ public:
qint32 getBandpassEnable();
void setBandpassEnable(qint32 bandpass_enable);
qint32 getCopyAudioToUdp();
void setCopyAudioToUdp(qint32 copy_audio_to_udp);
QString* getUdpAddress();
void setUdpAddress(QString* udp_address);
qint32 getUdpPort();
void setUdpPort(qint32 udp_port);
qint32 getRgbColor();
void setRgbColor(qint32 rgb_color);
@ -97,15 +88,6 @@ private:
qint32 bandpass_enable;
bool m_bandpass_enable_isSet;
qint32 copy_audio_to_udp;
bool m_copy_audio_to_udp_isSet;
QString* udp_address;
bool m_udp_address_isSet;
qint32 udp_port;
bool m_udp_port_isSet;
qint32 rgb_color;
bool m_rgb_color_isSet;
