Added information about O/S, CPU architecture and application name where it was missing

appsrv/main.cpp

@@ -54,7 +54,7 @@ static int runQtApplication(int argc, char* argv[], qtwebapp::LoggerWithFile *lo

     QCoreApplication::setOrganizationName("f4exb");
     QCoreApplication::setApplicationName("SDRangelSrv");
-    QCoreApplication::setApplicationVersion("3.9.0");
+    QCoreApplication::setApplicationVersion("3.10.0");

     int catchSignals[] = {SIGQUIT, SIGINT, SIGTERM, SIGHUP};
     std::vector<int> vsig(catchSignals, catchSignals + sizeof(catchSignals) / sizeof(int));

sdrbase/resources/index.html

@@ -1137,7 +1137,7 @@ margin-bottom: 20px;
   "description" : "Summarized information about logical devices from hardware devices attached to this SDRangel instance"
 };
             defs.InstanceSummaryResponse = {
-  "required" : [ "devicesetlist", "qtVersion", "version" ],
+  "required" : [ "appname", "devicesetlist", "qtVersion", "version" ],
   "properties" : {
     "version" : {
       "type" : "string",
@@ -1147,6 +1147,18 @@ margin-bottom: 20px;
       "type" : "string",
       "description" : "Qt version with which the software was compiled"
     },
+    "appname" : {
+      "type" : "string",
+      "description" : "Application name: SDRangel for a GUI instance and SDRangelSrv for a server instance"
+    },
+    "architecture" : {
+      "type" : "string",
+      "description" : "Codename of the CPU architecture on which the instance is running (available with Qt >= 5.4)"
+    },
+    "os" : {
+      "type" : "string",
+      "description" : "Descriptive text of the operating system running the instance (available with Qt >= 5.4)"
+    },
     "logging" : {
       "$ref" : "#/definitions/LoggingInfo"
     },
@@ -16894,7 +16906,7 @@ except ApiException as e:
           </div>
           <div id="generator">
             <div class="content">
-              Generated 2018-01-06T09:41:18.709+01:00
+              Generated 2018-01-07T01:23:55.663+01:00
             </div>
           </div>
       </div>

sdrgui/mainwindow.cpp

@@ -605,7 +605,8 @@ void MainWindow::createStatusBar()
 {
     QString qtVersionStr = QString("Qt %1 ").arg(QT_VERSION_STR);
 #if QT_VERSION >= 0x050400
-    m_showSystemWidget = new QLabel("SDRangel v" + qApp->applicationVersion() + " " + qtVersionStr + QSysInfo::prettyProductName(), this);
+    m_showSystemWidget = new QLabel("SDRangel v" + qApp->applicationVersion() + " " + qtVersionStr
+            + QSysInfo::currentCpuArchitecture() + " " + QSysInfo::prettyProductName(), this);
 #else
     m_showSystemWidget = new QLabel("SDRangel v" + qApp->applicationVersion() + " " + qtVersionStr, this);
 #endif

sdrgui/readme.md

@@ -634,16 +634,14 @@ Self explanatory

 Qt version with which this copy of SDRangel was compiled.

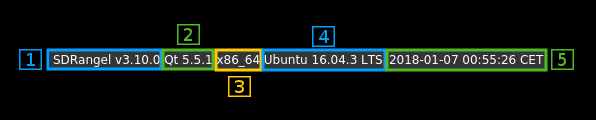

-<h4>8.3. System</h4>
+<h4>8.3. Architecture</h4>

-Pretty print of the system in which SDRangel is running.
+Codename of the CPU architecture in which SDRangel is running.

-<h4>8.4. Local date</h4>
+<h4>8.4. Operating system</h4>

-Local date according to system clock
-
-<h4>8.5. Local time</h4>
-
-Local time according to system clock followed by the time zone code.
+Pretty print of the operating system in which SDRangel is running.

+<h4>8.5. Local date and time</h4>

+Local time timestamp according to system clock

sdrgui/webapi/webapiadaptergui.cpp

@@ -18,6 +18,7 @@

 #include <QApplication>
 #include <QList>
+#include <QSysInfo>

 #include <unistd.h>

@@ -72,8 +73,13 @@ int WebAPIAdapterGUI::instanceSummary(
         SWGSDRangel::SWGErrorResponse& error __attribute__((unused)))
 {

+    *response.getAppname() = qApp->applicationName();
     *response.getVersion() = qApp->applicationVersion();
     *response.getQtVersion() = QString(QT_VERSION_STR);
+#if QT_VERSION >= 0x050400
+    *response.getArchitecture() = QString(QSysInfo::currentCpuArchitecture());
+    *response.getOs() = QString(QSysInfo::prettyProductName());
+#endif

     SWGSDRangel::SWGLoggingInfo *logging = response.getLogging();
     logging->init();

sdrsrv/webapi/webapiadaptersrv.cpp

@@ -19,6 +19,7 @@
 #include <QCoreApplication>
 #include <QList>
 #include <QTextStream>
+#include <QSysInfo>

 #include <unistd.h>

@@ -68,8 +69,13 @@ int WebAPIAdapterSrv::instanceSummary(
         SWGSDRangel::SWGErrorResponse& error __attribute__((unused)))
 {

+    *response.getAppname() = QCoreApplication::instance()->applicationName();
     *response.getVersion() = QCoreApplication::instance()->applicationVersion();
     *response.getQtVersion() = QString(QT_VERSION_STR);
+#if QT_VERSION >= 0x050400
+    *response.getArchitecture() = QString(QSysInfo::currentCpuArchitecture());
+    *response.getOs() = QString(QSysInfo::prettyProductName());
+#endif

     SWGSDRangel::SWGLoggingInfo *logging = response.getLogging();
     logging->init();

swagger/sdrangel/api/swagger/swagger.yaml

@@ -1010,6 +1010,7 @@ definitions:
     required:
       - version
       - qtVersion
+      - appname
       - devicesetlist
     properties:
       version:
@@ -1018,6 +1019,15 @@ definitions:
       qtVersion:
         description: "Qt version with which the software was compiled"
         type: string
+      appname:
+        description: "Application name: SDRangel for a GUI instance and SDRangelSrv for a server instance"
+        type: string
+      architecture:
+        description: "Codename of the CPU architecture on which the instance is running (available with Qt >= 5.4)"
+        type: string
+      os:
+        description: "Descriptive text of the operating system running the instance (available with Qt >= 5.4)"
+        type: string
       logging:
         $ref: "#/definitions/LoggingInfo"
       devicesetlist:

swagger/sdrangel/code/html2/index.html

@@ -1137,7 +1137,7 @@ margin-bottom: 20px;
   "description" : "Summarized information about logical devices from hardware devices attached to this SDRangel instance"
 };
             defs.InstanceSummaryResponse = {
-  "required" : [ "devicesetlist", "qtVersion", "version" ],
+  "required" : [ "appname", "devicesetlist", "qtVersion", "version" ],
   "properties" : {
     "version" : {
       "type" : "string",
@@ -1147,6 +1147,18 @@ margin-bottom: 20px;
       "type" : "string",
       "description" : "Qt version with which the software was compiled"
     },
+    "appname" : {
+      "type" : "string",
+      "description" : "Application name: SDRangel for a GUI instance and SDRangelSrv for a server instance"
+    },
+    "architecture" : {
+      "type" : "string",
+      "description" : "Codename of the CPU architecture on which the instance is running (available with Qt >= 5.4)"
+    },
+    "os" : {
+      "type" : "string",
+      "description" : "Descriptive text of the operating system running the instance (available with Qt >= 5.4)"
+    },
     "logging" : {
       "$ref" : "#/definitions/LoggingInfo"
     },
@@ -16894,7 +16906,7 @@ except ApiException as e:
           </div>
           <div id="generator">
             <div class="content">
-              Generated 2018-01-06T09:41:18.709+01:00
+              Generated 2018-01-07T01:23:55.663+01:00
             </div>
           </div>
       </div>

swagger/sdrangel/code/qt5/client/SWGInstanceSummaryResponse.cpp

@@ -39,6 +39,9 @@ void
 SWGInstanceSummaryResponse::init() {
     version = new QString("");
     qt_version = new QString("");
+    appname = new QString("");
+    architecture = new QString("");
+    os = new QString("");
     logging = new SWGLoggingInfo();
     devicesetlist = new SWGDeviceSetList();
 }
@@ -54,6 +57,18 @@ SWGInstanceSummaryResponse::cleanup() {
         delete qt_version;
     }

+    if(appname != nullptr) {
+        delete appname;
+    }
+
+    if(architecture != nullptr) {
+        delete architecture;
+    }
+
+    if(os != nullptr) {
+        delete os;
+    }
+
     if(logging != nullptr) {
         delete logging;
     }
@@ -76,6 +91,9 @@ void
 SWGInstanceSummaryResponse::fromJsonObject(QJsonObject &pJson) {
     ::SWGSDRangel::setValue(&version, pJson["version"], "QString", "QString");
     ::SWGSDRangel::setValue(&qt_version, pJson["qtVersion"], "QString", "QString");
+    ::SWGSDRangel::setValue(&appname, pJson["appname"], "QString", "QString");
+    ::SWGSDRangel::setValue(&architecture, pJson["architecture"], "QString", "QString");
+    ::SWGSDRangel::setValue(&os, pJson["os"], "QString", "QString");
     ::SWGSDRangel::setValue(&logging, pJson["logging"], "SWGLoggingInfo", "SWGLoggingInfo");
     ::SWGSDRangel::setValue(&devicesetlist, pJson["devicesetlist"], "SWGDeviceSetList", "SWGDeviceSetList");
 }
@@ -98,6 +116,12 @@ SWGInstanceSummaryResponse::asJsonObject() {

     toJsonValue(QString("qtVersion"), qt_version, obj, QString("QString"));

+    toJsonValue(QString("appname"), appname, obj, QString("QString"));
+
+    toJsonValue(QString("architecture"), architecture, obj, QString("QString"));
+
+    toJsonValue(QString("os"), os, obj, QString("QString"));
+
     toJsonValue(QString("logging"), logging, obj, QString("SWGLoggingInfo"));

     toJsonValue(QString("devicesetlist"), devicesetlist, obj, QString("SWGDeviceSetList"));
@@ -123,6 +147,33 @@ SWGInstanceSummaryResponse::setQtVersion(QString* qt_version) {
     this->qt_version = qt_version;
 }

+QString*
+SWGInstanceSummaryResponse::getAppname() {
+    return appname;
+}
+void
+SWGInstanceSummaryResponse::setAppname(QString* appname) {
+    this->appname = appname;
+}
+
+QString*
+SWGInstanceSummaryResponse::getArchitecture() {
+    return architecture;
+}
+void
+SWGInstanceSummaryResponse::setArchitecture(QString* architecture) {
+    this->architecture = architecture;
+}
+
+QString*
+SWGInstanceSummaryResponse::getOs() {
+    return os;
+}
+void
+SWGInstanceSummaryResponse::setOs(QString* os) {
+    this->os = os;
+}
+
 SWGLoggingInfo*
 SWGInstanceSummaryResponse::getLogging() {
     return logging;

swagger/sdrangel/code/qt5/client/SWGInstanceSummaryResponse.h

@@ -50,6 +50,15 @@ public:
     QString* getQtVersion();
     void setQtVersion(QString* qt_version);

+    QString* getAppname();
+    void setAppname(QString* appname);
+
+    QString* getArchitecture();
+    void setArchitecture(QString* architecture);
+
+    QString* getOs();
+    void setOs(QString* os);
+
     SWGLoggingInfo* getLogging();
     void setLogging(SWGLoggingInfo* logging);

@@ -60,6 +69,9 @@ public:
 private:
     QString* version;
     QString* qt_version;
+    QString* appname;
+    QString* architecture;
+    QString* os;
     SWGLoggingInfo* logging;
     SWGDeviceSetList* devicesetlist;
 };
