GS-232 Rotator Controller Feature Plugin

Introduction

The GS-232 Rotator Controller feature plugin allows SDRangel to send commands to GS-232 rotators. This allows SDRangel to point antennas mounted on a rotator to a specified azimuth and elevation.

Azimuth and elevation can be set manually by a user in the GUI, via the REST API, or via another plugin, such as the Map Feature, the ADS-B Demodulator, or the Star Tracker.

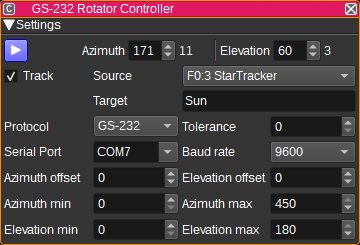

Interface

1: Start/Stop plugin

This button starts or stops the plugin. When the plugin is stopped, azimuth and elevation commands will not be sent to the GS-232 rotator.

2: Azimuth

Specifies the target azimuth (angle in degrees, clockwise from North) to point the antenna towards. Valid values range from 0 to 450 degrees. The value to the right of the target azimuth, is the current azimuth read from the GS-232 rotator.

3: Elevation

Specifies the target elevation (angle in degrees) to point the antenna towards. Valid values range from 0 to 180 degrees, where 0 and 180 point towards the horizon and 90 degrees to zenith. The value to the right of the target elevation, is the current elevation read from the GS-232 rotator.

4: Track

When checked, the target azimuth and elevation will be controlled by the Channel or Feature Source (5). For example, this allows an aircraft to be tracked, by setting the Source to the ADS-B Demodulator plugin, or the Moon to be tracked by settng Source to the Star Tracker plugin.

5: Source

Specify the SDRangel Channel or Feature that that will control the target aziumth and elevation values, when Track (4) is checked.

6: Target

When tracking is enabled, this field will display a name for the target being tracked, as indicated by the selected Source plugin (5). For example, the ADS-B plugin will display the flight number of the target aircraft. The Star Tracker plugin will display Sun, Moon or Star.

7: Protocol

Selects which serial protocol to use. This can be GS-232 or SPID (rot2prog).

8: Tolerance

Specifies a tolerance in degrees, below which, changes in target azimuth or elevation will not be sent to the rotator. This can prevent some rotators that have a limited accuracy from making unbeneficial movements.

If this set to 0, every target azimuth and elevation received by the controller will be send to the rotator. If it is set to 2, then a change in azimuth of +-1 degree from the previous azimuth, would not be sent to the rotator.

9: Serial Port

Specifies the serial port (E.g. COM3 on Windows or /dev/ttyS0 on Linux) that will be used to send commands to the GS-232 rotator.

10: Baud rate

Specifies the baud rate that will be used to send commands to the GS-232 rotator. Typically this is 9600.

11: Azimuth Offset

The azimuth offset specifies an angle in degrees that is added to the target azimuth before sending to the controller. This allows for a misalignment of the rotator to be corrected.

12: Elevation Offset

The elevation offset specifies an angle in degrees that is added to the target elevation before sending to the controller. This allows for a misalignment of the rotator to be corrected.

13 and 14: Azimuth Min and Max

The azimuth min and max values specify the minimum and maximum azimuth values (after offset has been applied), that will be sent to the rotator. These values can be used to prevent the rotator from rotating an antenna in to an obstable.

15 and 16: Elevation Min and Max

The elevation min and max values specify the minimum and maximum elevation values (after offset has been applied), that will be sent to the rotator. These values can be used to prevent the rotator from rotating an antenna in to an obstable. If the maximum elevation is set to 0, the controller will only use the M GS-232 command, rather than M and W.

GS-232 Protocol Implementation

The controller uses the Waaa eee command when elevation needs to be set. When only azimuth needs to be set, the Maaa command is used. The C2 command is used to read current azimuth and elevation. A response of AZ=aaaEL=eee is expected.

SPID rot2prog Protocol Implementation

The controller uses the 0x2f set command with PH/PV=2 to set azimuth and elevation. The 0x1f status command is used to read current azimuth and elevation. A 12 byte response is expected for set and status commands. All frames start with 0x57 and end with 0x20.

API

Full details of the API can be found in the Swagger documentation. Here is a quick example of how to set the azimuth and elevation from the command line:

curl -X PATCH "http://127.0.0.1:8091/sdrangel/featureset/0/feature/0/settings" -d '{"featureType": "GS232Controller",  "GS232ControllerSettings": { "azimuth": 180, "elevation": 45 }}'

To start sending commands to the rotator:

curl -X POST "http://127.0.0.1:8091/sdrangel/featureset/0/feature/0/run"
