UDP source plugin

Introduction

By "source" one should undetstand a source of samples for the outside of SDRangel application. An UDP connection is established from the plugin to the given address and port and samples are directed to it.

The block size is fixed to 512 samples that is 2048 bytes. The receiving application must make sure it acknowledges this block size. UDP may fragment the block but there will be a point when the last UDP block will fill up a complete block of 2048 bytes. In particular in GNUradio the UDP source block must be configured with a 2048 bytes payload size.

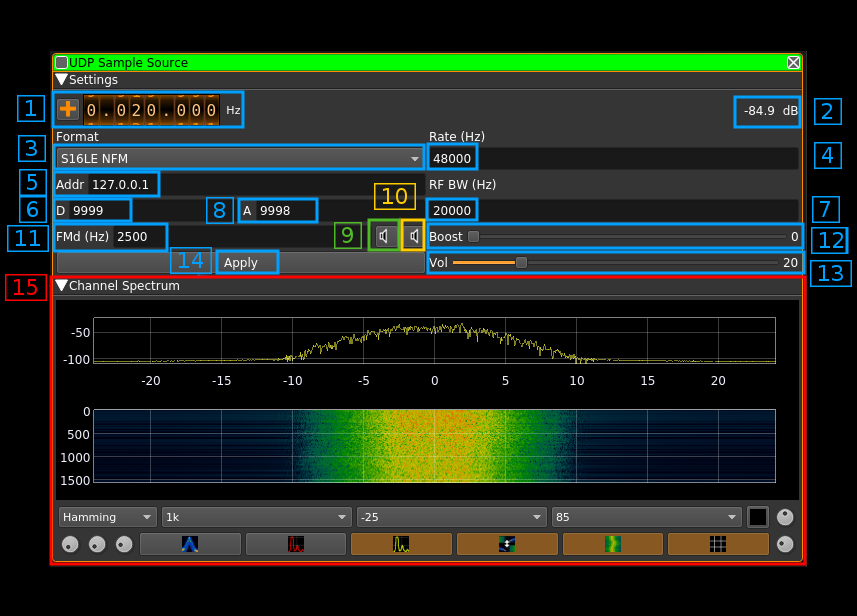

Interface

1: Frequency shift from center frequency of reception

Use the wheels to adjust the frequency shift in Hz from the center frequency of reception. Use the "+/-" button on the left side to toggle between positive and negative shift.

2: Channel power

Total power in dB relative to a +/- 1.0 amplitude signal received in the pass band.

3: Type of samples

Combo box to specify the type of samples that are sent over UDP.

• S16LE I/Q: Raw I/Q samples on signed 16 bits integers with Little Endian layout. Use it with software that accepts I/Q data as input like GNUradio with the UDP source block. The output is interleaved I and Q samples
• S16LE NFM: AF of FM demodulated signal as 16 bits signed integers with Little Endian layout. Use it with software that takes the FM demodulated audio or the discriminator output of a radio as input. Make sure you specify the appropriate signal bandwidth (see 7) according to the AF bandwidth needs. The output is a repetition of NFM samples on real part and on imaginary part this facilitates integration wtih software expecting a stereo type of input with the same samples on L and R channels. With GNURadio just use a complex to real block.
• S16LE NFM Mono: This is the same as above but only one sample is output for one NFM sample. This can be used with software that accept a mono type of input like dsd. With GNURadio you can use a short to float block but remember that the UDP payload size is now 1024 bytes so you have to change it in the UDP source block.
• S16LE USB: AF of USB demodulated signal as 16 bits signed integers with Little Endian layout. Use it with software that uses a SSB demodulated signal as input i.e. software that is based on the audio output of a SSB radio. The output is the I/Q binaural output of the demodulator.
• S16LE LSB: AF of LSB demodulated signal as 16 bits signed integers with Little Endian layout. Use it with software that uses a SSB demodulated signal as input i.e. software that is based on the audio output of a SSB radio. The output is the I/Q binaural output of the demodulator.
• S16LE LSB Mono: AF of the LSB part of a SSB demodulated signal as "mono" (I+Q)*0.7 samples that is one sample per demodulator output sample. This can be used with software that accepts mono type of input. Remember that as these are single 16 bits samples the UDP payload size is 1024 bytes (not 2048).
• S16LE USB Mono: AF of the USB part of a SSB demodulated signal as "mono" (I+Q)*0.7 samples that is one sample per demodulator output sample. This can be used with software that accepts mono type of input. Remember that as these are single 16 bits samples the UDP payload size is 1024 bytes (not 2048).
• S16LE AM Mono: AF of the enveloppe demodulated signal i.e. channel magnitude or sqrt(I² + Q²) as "mono" samples that is one sample per demodulator output sample. This can be used with software that accepts mono type of input. Remember that as these are single 16 bits samples the UDP payload size is 1024 bytes (not 2048)

4: Signal sample rate

Sample rate in samples per second of the signal that is sent over UDP. For raw I/Q output this is the sample rate of a complete I/Q sample (4 bytes). For demodulated outputs this is the sample rate of an "audio" sample (2 bytes).

5: Destination IP address

IP address of the remote destination to which samples are sent

6: Destination port

Remote UDP port number to which samples are sent

7: Signal bandwidth

The signal is bandpass filtered to this bandwidth (zero frequency centered) before being sent out as raw I/Q samples or before being demodulated for SSB and FM outputs. Thus a 20000 Hz bandwidth for example means +/-10000 Hz around center channel frequency.

8: Audio UDP port

There is a possible feedback of audio samples at 48 kHz into SDRangel using this port as the UDP port on the local machine to collect the audio samples.

9: Toggle audio feedback

This turns on or off the audio samples feedback

10: Mono/Stereo toggle for audio feedback

This toggles between mono or stereo audio feedback

11: FM deviation

This is the FM deviation in Hz for NFM demodulated samples. Therefore it is active only if S16LE NFM is selected as the sample format. A positive deviation of this amount from the central carrier will result in a sample output value of 32767 (0x7FFF) corresponding to the +1.0 real value. A negative deviation of this amount from the central carrier will result in a sample output value of -32768 (0x8000) corresponding to the -1.0 real value.

12: Boost

Amplify the signal being sent over UDP from the original. There are 4 levels of amplification from 0: none to 3: maximum

13: Audio volume

Volume of the audio feedback (when used).

14: Apply (validation) button

When any item of connection or stream configuration changes this button becomes active to make the changes effective when pressed.

15: Spectrum display

This is the spectrum display of the channel signal after bandpass filtering. Please refer to the Spectrum display description for details.

This spectrum is centered on the center frequency of the channel (center frequency of reception + channel shift) and is that of a complex signal i.e. there are positive and negative frequency. The width of the spectrum is proportional of the sample rate. That is for a sample rate of S samples per seconds the spectrum spans from -S/2 to +S/2 Hz.
