Local output plugin

Introduction

This output sample sink plugin sends its samples to a Local Source channel in another device set.

Interface

The top and bottom bars of the device window are described here

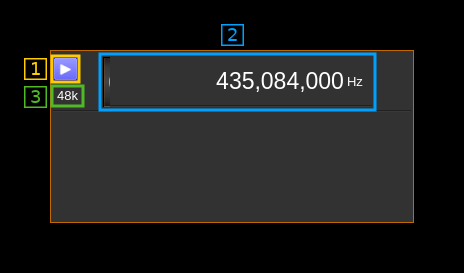

SDR Local output plugin GUI

1: Start/Stop

Device start / stop button.

  • Blue triangle icon: device is ready and can be started
  • Green square icon: device is running and can be stopped

2: Frequency

This is the center frequency in Hz sent from the Local Source channel instance and corresponds to the center frequency of transmission.

3: Stream sample rate

Stream I/Q sample rate in kS/s
