readme.md
Remote source channel plugin
Introduction
This plugin receives I/Q samples from UDP and copies them to the baseband to be transmitted by the sink output device. It uses SDRangel remote format and possible FEC protection.
It is present only in Linux binary releases.
Build
The plugin will be built only if the CM256cc library is installed in your system. For CM256cc library you will have to specify the include and library paths on the cmake command line. Say if you install cm256cc in /opt/install/cm256cc you will have to add -DCM256CC_DIR=/opt/install/cm256cc to the cmake commands.

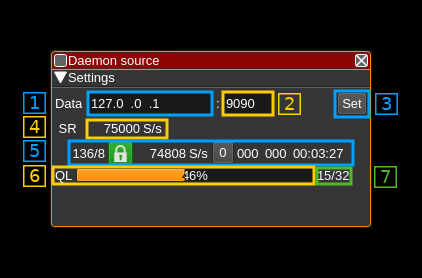

Interface
1: Data local address
IP address of the local network interface from where the I/Q samples are fetched via UDP
2: Data local port
Local port from where the I/Q samples are fetched via UDP
3: Validation button
When the return key is hit within the address (1) or port (2) the changes are effective immediately. You can also use this button to set again these values.
4: Stream sample rate
Stream sample rate as specified in the stream meta data
5: Stream status
5.1: Total number of frames and number of FEC blocks
This is the total number of frames and number of FEC blocks separated by a slash '/' as sent in the meta data block thus acknowledged by the distant server. When you set the number of FEC blocks with (4.1) the effect may not be immediate and this information can be used to monitor when it gets effectively set in the distant server.
A frame consists of 128 data blocks (1 meta data block followed by 127 I/Q data blocks) and a variable number of FEC blocks used to protect the UDP transmission with a Cauchy MDS block erasure correction.
Using the Cauchy MDS block erasure correction ensures that if at least the number of data blocks (128) is received per complete frame then all lost blocks in any position can be restored. For example if 8 FEC blocks are used then 136 blocks are transmitted per frame. If only 130 blocks (128 or greater) are received then data can be recovered. If only 127 blocks (or less) are received then none of the lost blocks can be recovered.
5.2: Stream status
The color of the icon indicates stream status:
- Green: all original blocks have been received for all frames during the last polling timeframe (ex: 136)
- No color: some original blocks were reconstructed from FEC blocks for some frames during the last polling timeframe (ex: between 128 and 135)
- Red: some original blocks were definitely lost for some frames during the last polling timeframe (ex: less than 128)
5.3: Actual stream sample rate
This is the sample rate calculated using the counter of samples between two consecutive polls
5.4: Reset events counters
This push button can be used to reset the events counters (5.5 and 5.6) and reset the event counts timer (5.7)
5.5: Unrecoverable error events counter
This counter counts the unrecoverable error conditions found (i.e. 4.4 lower than 128) since the last counters reset.
5.6: Recoverable error events counter
This counter counts the unrecoverable error conditions found (i.e. 4.4 between 128 and 128 plus the number of FEC blocks) since the last counters reset.
5.7: events counters timer
This HH:mm:ss time display shows the time since the reset events counters button (5.4) was pushed.
6: Transmitter queue length gauge
This is ratio of the reported number of data frame blocks in the remote queue over the total number of blocks in the queue.
7: Transmitter queue length status
This is the detail of the ratio shown in the gauge. Each frame block is a block of 127 ✕ 126 samples (16 bit I or Q samples) or 127 ✕ 63 samples (24 bit I or Q samples).
