Add an option to enforce simplex operation (moving both Tx and Rx frequency) when double-clicking on a decoded text line.
git-svn-id: svn+ssh://svn.code.sf.net/p/wsjt/wsjt/branches/wsjtx@8144 ab8295b8-cf94-4d9e-aec4-7959e3be5d79
This commit is contained in:
Joe Taylor
parent
9a2bb37a91
commit
5c8458de35
@ -553,6 +553,7 @@ private:
|
||||
bool clear_DX_;
|
||||
bool miles_;
|
||||
bool quick_call_;
|
||||
bool default_simplex_;
|
||||
bool disable_TX_on_73_;
|
||||
int watchdog_;
|
||||
bool TX_messages_;
|
||||
@ -643,6 +644,7 @@ bool Configuration::DXCC () const {return m_->DXCC_;}
|
||||
bool Configuration::clear_DX () const {return m_->clear_DX_;}
|
||||
bool Configuration::miles () const {return m_->miles_;}
|
||||
bool Configuration::quick_call () const {return m_->quick_call_;}
|
||||
bool Configuration::default_simplex () const {return m_->default_simplex_;}
|
||||
bool Configuration::disable_TX_on_73 () const {return m_->disable_TX_on_73_;}
|
||||
int Configuration::watchdog () const {return m_->watchdog_;}
|
||||
bool Configuration::TX_messages () const {return m_->TX_messages_;}
|
||||
@ -1082,6 +1084,7 @@ void Configuration::impl::initialize_models ()
|
||||
ui_->clear_DX_check_box->setChecked (clear_DX_);
|
||||
ui_->miles_check_box->setChecked (miles_);
|
||||
ui_->quick_call_check_box->setChecked (quick_call_);
|
||||
ui_->cbDefaultSimplex->setChecked (default_simplex_);
|
||||
ui_->disable_TX_on_73_check_box->setChecked (disable_TX_on_73_);
|
||||
ui_->tx_watchdog_spin_box->setValue (watchdog_);
|
||||
ui_->TX_messages_check_box->setChecked (TX_messages_);
|
||||
@ -1312,6 +1315,7 @@ void Configuration::impl::read_settings ()
|
||||
clear_DX_ = settings_->value ("ClearCallGrid", false).toBool ();
|
||||
miles_ = settings_->value ("Miles", false).toBool ();
|
||||
quick_call_ = settings_->value ("QuickCall", false).toBool ();
|
||||
default_simplex_ = settings_->value ("DefaultSimplex", false).toBool ();
|
||||
disable_TX_on_73_ = settings_->value ("73TxDisable", false).toBool ();
|
||||
watchdog_ = settings_->value ("TxWatchdog", 6).toInt ();
|
||||
TX_messages_ = settings_->value ("Tx2QSO", true).toBool ();
|
||||
@ -1403,6 +1407,7 @@ void Configuration::impl::write_settings ()
|
||||
settings_->setValue ("ClearCallGrid", clear_DX_);
|
||||
settings_->setValue ("Miles", miles_);
|
||||
settings_->setValue ("QuickCall", quick_call_);
|
||||
settings_->setValue ("DefaultSimplex", default_simplex_);
|
||||
settings_->setValue ("73TxDisable", disable_TX_on_73_);
|
||||
settings_->setValue ("TxWatchdog", watchdog_);
|
||||
settings_->setValue ("Tx2QSO", TX_messages_);
|
||||
@ -1802,6 +1807,7 @@ void Configuration::impl::accept ()
|
||||
clear_DX_ = ui_->clear_DX_check_box->isChecked ();
|
||||
miles_ = ui_->miles_check_box->isChecked ();
|
||||
quick_call_ = ui_->quick_call_check_box->isChecked ();
|
||||
default_simplex_ = ui_->cbDefaultSimplex->isChecked ();
|
||||
disable_TX_on_73_ = ui_->disable_TX_on_73_check_box->isChecked ();
|
||||
watchdog_ = ui_->tx_watchdog_spin_box->value ();
|
||||
TX_messages_ = ui_->TX_messages_check_box->isChecked ();
|
||||
|
||||
@ -117,6 +117,7 @@ public:
|
||||
bool clear_DX () const;
|
||||
bool miles () const;
|
||||
bool quick_call () const;
|
||||
bool default_simplex() const;
|
||||
bool disable_TX_on_73 () const;
|
||||
int watchdog () const;
|
||||
bool TX_messages () const;
|
||||
|
||||
154
Configuration.ui
154
Configuration.ui
@ -269,12 +269,51 @@
|
||||
<string>Behavior</string>
|
||||
</property>
|
||||
<layout class="QGridLayout" name="gridLayout_8">
|
||||
<item row="0" column="1">
|
||||
<widget class="QCheckBox" name="enable_VHF_features_check_box">
|
||||
<property name="text">
|
||||
<string>Enable VHF/UHF/Microwave features</string>
|
||||
</property>
|
||||
</widget>
|
||||
<item row="4" column="1">
|
||||
<layout class="QHBoxLayout" name="horizontalLayout_12">
|
||||
<item>
|
||||
<spacer name="horizontalSpacer_7">
|
||||
<property name="orientation">
|
||||
<enum>Qt::Horizontal</enum>
|
||||
</property>
|
||||
<property name="sizeHint" stdset="0">
|
||||
<size>
|
||||
<width>0</width>
|
||||
<height>0</height>
|
||||
</size>
|
||||
</property>
|
||||
</spacer>
|
||||
</item>
|
||||
<item>
|
||||
<widget class="QLabel" name="label_10">
|
||||
<property name="text">
|
||||
<string>Tx watchdog:</string>
|
||||
</property>
|
||||
<property name="buddy">
|
||||
<cstring>tx_watchdog_spin_box</cstring>
|
||||
</property>
|
||||
</widget>
|
||||
</item>
|
||||
<item>
|
||||
<widget class="QSpinBox" name="tx_watchdog_spin_box">
|
||||
<property name="toolTip">
|
||||
<string><html><head/><body><p>Number of minutes before unattended transmissions are aborted</p></body></html></string>
|
||||
</property>
|
||||
<property name="specialValueText">
|
||||
<string>Disabled</string>
|
||||
</property>
|
||||
<property name="suffix">
|
||||
<string> minutes</string>
|
||||
</property>
|
||||
<property name="prefix">
|
||||
<string/>
|
||||
</property>
|
||||
<property name="value">
|
||||
<number>6</number>
|
||||
</property>
|
||||
</widget>
|
||||
</item>
|
||||
</layout>
|
||||
</item>
|
||||
<item row="0" column="0">
|
||||
<widget class="QCheckBox" name="monitor_off_check_box">
|
||||
@ -289,6 +328,13 @@
|
||||
</property>
|
||||
</widget>
|
||||
</item>
|
||||
<item row="0" column="1">
|
||||
<widget class="QCheckBox" name="enable_VHF_features_check_box">
|
||||
<property name="text">
|
||||
<string>Enable VHF/UHF/Microwave features</string>
|
||||
</property>
|
||||
</widget>
|
||||
</item>
|
||||
<item row="3" column="1">
|
||||
<widget class="QCheckBox" name="decode_at_52s_check_box">
|
||||
<property name="text">
|
||||
@ -296,6 +342,23 @@
|
||||
</property>
|
||||
</widget>
|
||||
</item>
|
||||
<item row="2" column="1">
|
||||
<widget class="QCheckBox" name="single_decode_check_box">
|
||||
<property name="text">
|
||||
<string>Single decode</string>
|
||||
</property>
|
||||
</widget>
|
||||
</item>
|
||||
<item row="1" column="1">
|
||||
<widget class="QCheckBox" name="tx_QSY_check_box">
|
||||
<property name="toolTip">
|
||||
<string><html><head/><body><p>Some rigs are not able to process CAT commands while transmitting. This means that if you are operating in split mode you may have to uncheck this option.</p></body></html></string>
|
||||
</property>
|
||||
<property name="text">
|
||||
<string>Allow Tx frequency changes while transmitting</string>
|
||||
</property>
|
||||
</widget>
|
||||
</item>
|
||||
<item row="6" column="0" colspan="2">
|
||||
<layout class="QHBoxLayout" name="horizontalLayout_9">
|
||||
<item>
|
||||
@ -355,69 +418,6 @@ quiet period when decoding is done.</string>
|
||||
</item>
|
||||
</layout>
|
||||
</item>
|
||||
<item row="2" column="1">
|
||||
<widget class="QCheckBox" name="single_decode_check_box">
|
||||
<property name="text">
|
||||
<string>Single decode</string>
|
||||
</property>
|
||||
</widget>
|
||||
</item>
|
||||
<item row="1" column="1">
|
||||
<widget class="QCheckBox" name="tx_QSY_check_box">
|
||||
<property name="toolTip">
|
||||
<string><html><head/><body><p>Some rigs are not able to process CAT commands while transmitting. This means that if you are operating in split mode you may have to uncheck this option.</p></body></html></string>
|
||||
</property>
|
||||
<property name="text">
|
||||
<string>Allow Tx frequency changes while transmitting</string>
|
||||
</property>
|
||||
</widget>
|
||||
</item>
|
||||
<item row="4" column="0">
|
||||
<layout class="QHBoxLayout" name="horizontalLayout_12">
|
||||
<item>
|
||||
<widget class="QLabel" name="label_10">
|
||||
<property name="text">
|
||||
<string>Tx watchdog:</string>
|
||||
</property>
|
||||
<property name="buddy">
|
||||
<cstring>tx_watchdog_spin_box</cstring>
|
||||
</property>
|
||||
</widget>
|
||||
</item>
|
||||
<item>
|
||||
<widget class="QSpinBox" name="tx_watchdog_spin_box">
|
||||
<property name="toolTip">
|
||||
<string><html><head/><body><p>Number of minutes before unattended transmissions are aborted</p></body></html></string>
|
||||
</property>
|
||||
<property name="specialValueText">
|
||||
<string>Disabled</string>
|
||||
</property>
|
||||
<property name="suffix">
|
||||
<string> minutes</string>
|
||||
</property>
|
||||
<property name="prefix">
|
||||
<string/>
|
||||
</property>
|
||||
<property name="value">
|
||||
<number>6</number>
|
||||
</property>
|
||||
</widget>
|
||||
</item>
|
||||
<item>
|
||||
<spacer name="horizontalSpacer_7">
|
||||
<property name="orientation">
|
||||
<enum>Qt::Horizontal</enum>
|
||||
</property>
|
||||
<property name="sizeHint" stdset="0">
|
||||
<size>
|
||||
<width>0</width>
|
||||
<height>0</height>
|
||||
</size>
|
||||
</property>
|
||||
</spacer>
|
||||
</item>
|
||||
</layout>
|
||||
</item>
|
||||
<item row="1" column="0">
|
||||
<widget class="QCheckBox" name="monitor_last_used_check_box">
|
||||
<property name="toolTip">
|
||||
@ -438,7 +438,7 @@ quiet period when decoding is done.</string>
|
||||
</property>
|
||||
</widget>
|
||||
</item>
|
||||
<item row="3" column="0">
|
||||
<item row="4" column="0">
|
||||
<widget class="QCheckBox" name="disable_TX_on_73_check_box">
|
||||
<property name="toolTip">
|
||||
<string>Turns off automatic transmissions after sending a 73 or any other free
|
||||
@ -449,6 +449,13 @@ text message.</string>
|
||||
</property>
|
||||
</widget>
|
||||
</item>
|
||||
<item row="3" column="0">
|
||||
<widget class="QCheckBox" name="cbDefaultSimplex">
|
||||
<property name="text">
|
||||
<string>Double-click on call sets Tx and Rx freqs</string>
|
||||
</property>
|
||||
</widget>
|
||||
</item>
|
||||
</layout>
|
||||
</widget>
|
||||
</item>
|
||||
@ -2479,7 +2486,6 @@ soundcard changes</string>
|
||||
<tabstop>monitor_off_check_box</tabstop>
|
||||
<tabstop>monitor_last_used_check_box</tabstop>
|
||||
<tabstop>quick_call_check_box</tabstop>
|
||||
<tabstop>disable_TX_on_73_check_box</tabstop>
|
||||
<tabstop>tx_watchdog_spin_box</tabstop>
|
||||
<tabstop>CW_id_after_73_check_box</tabstop>
|
||||
<tabstop>enable_VHF_features_check_box</tabstop>
|
||||
@ -2623,12 +2629,12 @@ soundcard changes</string>
|
||||
</connection>
|
||||
</connections>
|
||||
<buttongroups>
|
||||
<buttongroup name="CAT_data_bits_button_group"/>
|
||||
<buttongroup name="CAT_stop_bits_button_group"/>
|
||||
<buttongroup name="TX_audio_source_button_group"/>
|
||||
<buttongroup name="CAT_data_bits_button_group"/>
|
||||
<buttongroup name="CAT_handshake_button_group"/>
|
||||
<buttongroup name="PTT_method_button_group"/>
|
||||
<buttongroup name="split_mode_button_group"/>
|
||||
<buttongroup name="CAT_handshake_button_group"/>
|
||||
<buttongroup name="TX_mode_button_group"/>
|
||||
<buttongroup name="CAT_stop_bits_button_group"/>
|
||||
</buttongroups>
|
||||
</ui>
|
||||
|
||||
Binary file not shown.
|
Before Width: | Height: | Size: 19 KiB After Width: | Height: | Size: 19 KiB |
@ -72,7 +72,11 @@ down. Messages highlighted in red are usually in response to your own
|
||||
CQ or from a tail-ender, and you probably want your Tx frequency to
|
||||
stay where it was.
|
||||
|
||||
- You can prevent your Tx frequency from being changed by checking the
|
||||

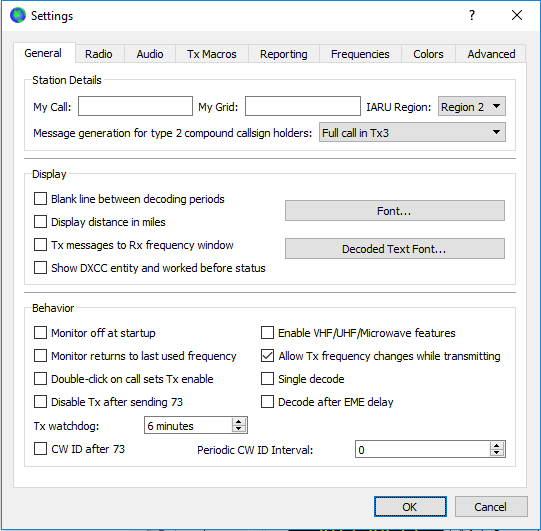

NOTE: Double-clicking on decoded messages can be defaulted to simplex
|
||||
operation by checking *Double click on call sets Tx and Rx freqs* on
|
||||
the *Settings -> General* tab.
|
||||
|
||||
NOTE: You can prevent your Tx frequency from being changed by checking the
|
||||
box *Lock Tx Freq*.
|
||||
|
||||
- Click somewhere on the waterfall to set Rx frequency (green marker
|
||||
|
||||
@ -3732,6 +3732,7 @@ void MainWindow::processMessage(DecodedText const& message, bool shift, bool ctr
|
||||
return;
|
||||
}
|
||||
|
||||
if(m_config.default_simplex()) ctrl=true;
|
||||
if(m_bFastMode or m_mode=="FT8") {
|
||||
auto i1=message.string ().indexOf(" CQ ");
|
||||
if(i1>10) {
|
||||
|
||||
