Updates to User Guide for v2.0. Mostly done up through Section 11.

doc/user_guide/en/introduction.adoc

@@ -7,7 +7,7 @@ K1**JT**,`" while the suffix "`-X`" indicates that _WSJT-X_ started as
 an extended and experimental branch of the program
 _WSJT_.

-_WSJT-X_ Version 1.9 offers nine different protocols or modes: *FT8*,
+_WSJT-X_ Version 2.0 offers nine different protocols or modes: *FT8*,
 *JT4*, *JT9*, *JT65*, *QRA64*, *ISCAT*, *MSK144*, *WSPR*, and *Echo*.
 The first five are designed for making reliable QSOs under extreme
 weak-signal conditions. They use nearly identical message structure
@@ -47,7 +47,7 @@ format with hashed callsigns.
 potential propagation paths using low-power transmissions. WSPR
 messages normally carry the transmitting station’s callsign, grid
 locator, and transmitter power in dBm, and they can be decoded at
-signal-to-noise ratios as low as -28 dB in a 2500 Hz bandwidth.  WSPR
+signal-to-noise ratios as low as -31 dB in a 2500 Hz bandwidth.  WSPR
 users with internet access can automatically upload reception
 reports to a central database called {wsprnet} that provides a mapping
 facility, archival storage, and many other features.

doc/user_guide/en/logging.adoc

@@ -18,17 +18,8 @@ this option is checked _WSJT-X_ appends some additional information to
 all CQ messages displayed in the _Band Activity_ window.  The name of
 the DXCC entity is shown, abbreviated if necessary.  Your "`worked
 before`" status for this callsign (according to log file
-`wsjtx_log.adi`) is flagged with a single character and a change of
-background color, as follows:
-
-[horizontal]
-!::  Default color bright purple: New DXCC entity
-~::  Light pink: You have already worked this DXCC entity but not
-this station
- ::  Green: You have previously worked the calling station
-
-In this respect the program does not distinguish between modes, but it
-does differentiate between bands.
+`wsjtx_log.adi`) is indicated by highlighting colors, if that option
+has been selected.

 _WSJT-X_ includes a built-in `cty.dat` file containing DXCC prefix
 information.  Updated files can be downloaded from the {cty_dat} web
@@ -45,3 +36,5 @@ before status* off and then on again will cause _WSJT-X_ to re-read
 the log file.  Very large log files may cause _WSJT-X_ to slow down
 when searching for calls.

+Additional features are provided for *Contest* and *Fox* logging.
+(more to come, here ...)

doc/user_guide/en/make-qso.adoc

@@ -19,7 +19,10 @@ one callsign) followed by the transmitting station’s grid locator, a
 signal report, R plus a signal report, or the final acknowledgements
 RRR or 73.  These messages are compressed and encoded in a highly
 efficient and reliable way.  In uncompressed form (as displayed
-on-screen) they may contain as many as 22 characters.
+on-screen) they may contain as many as 22 characters.  Some operators
+prefer ro send RR73 rather than RRR.  This is workable because RR73 is
+encoded as a valid grid locator, one unlikely ever to be occupied by
+an amateur station.

 *Signal reports* are specified as signal-to-noise ratio (S/N) in dB,
 using a standard reference noise bandwidth of 2500 Hz.  Thus, in the
@@ -76,36 +79,92 @@ NOTE: When *Auto-Seq* is enabled the program de-activates *Enable Tx*
 at the end of each QSO.  It is not intended that _WSJT-X_ should make
 fully automated QSOs.

-=== VHF Contest Mode
+=== Contest Messages

-A special *NA VHF Contest* mode can be activated for FT8 and MSK144.
-To use it you must activate *File | Settings | General | Enable
-VHF/UHF/Microwave features* and then check the box *NA VHF Contest* on
-the main window.  This mode is configured especially for contests in
-which four-character grid locators are the required exchange.  When
-*NA VHF Contest* mode is active, the standard QSO sequence looks like
-this:
+The new FT8 and MSK144 protocols support special messages optimized
+for *NA VHF* and *EU VHF* contests. FT8 also supports messages for
+*ARRL Field Day* and the *ARRL RTTY Roundup*.  The decoders recognize
+and decode these messages at any time.  Configure the program to
+automatically generate the required message types by selecting a
+supported operating activity on the *Settings | Advanced* tab.  Model
+QSOs then proceed as follows, for each event type:
+
+*NA VHF Contest*

  CQ K1ABC FN42
-                      K1ABC W9XYZ EN37
+                       K1ABC W9XYZ EN37
  W9XYZ K1ABC R FN42
-                      K1ABC W9XYZ RRR
+                       K1ABC W9XYZ RRR
  W9XYZ K1ABC 73

-In contest circumstances K1ABC might choose to call CQ again rather
-than sending 73 for his third transmission.
+Either callsign (or both) may have /R appended.  You can use RR73 in
+place of RRR, and the final 73 is optional.

-IMPORTANT: Do not use VHF Contest Mode on an HF band or in conditions
-where worldwide propagation is available.  See
-<<PROTOCOL_OVERVIEW,Protocol Specifications>> for further details.
+
+*EU VHF Contest*
+
+ CQ TEST G4ABC IO91
+                       G4ABC PA9XYZ JO22
+ PA9XYZ 570123 IO91NP
+                       G4ABC R 580071 JO22DB
+ PA9XYZ G4ABC RR73
+
+Either callsign (or both) may have /P appended.
+
+*ARRL Field Day*
+
+ CQ FD K1ABC FN42
+                       K1ABC W9XYZ 6A WI
+ W9XYZ K1ABC R 2B EMA
+                       K1ABC W9XYZ RR73
+
+*ARRL RTTY Roundup*
+
+ CQ RU K1ABC FN42
+                       K1ABC W9XYZ 579 WI
+ W9XYZ K1ABC R 589 MA
+                       K1ABC W9XYZ RR73

 [[COMP-CALL]]
 === Compound Callsigns

-Compound callsigns such as xx/K1ABC or K1ABC/x are handled in
-one of two possible ways:
+*FT8 and MSK144*

-.Messages containing Type 1 compound callsigns
+Compound callsigns like xx/K1ABC or K1ABC/x and nonstandard callsigns
+like YW18FIFA are supported for normal QSOs but not for the special
+contest-style messages.  Model QSOs look something like this:
+
+ CQ PJ4/K1ABC
+                       <PJ4/K1ABC> W9XYZ
+ W9XYZ <PJ4/K1ABC> +03
+                       <PJ4/K1ABC> W9XYZ R-08
+ <W9XYZ> PJ4/K1ABC RRR
+                       PJ4/K1ABC <W9XYZ> 73
+
+The compound or nonstandard callsigns are automatically recognized and
+handled using special message formats.  One such callsign and one
+standard callsign may appear in most messages, provided that one of
+them is enclosed in <  > angle brackets.  If the message includes a
+grid locator or numerical signal report, the brackets must enclose the
+compound or nonstandard callsign; otherwise the brackets may be around
+either call.
+
+Angle brackets imply that the enclosed callsign is not transmitted in
+full, but rather as a hash code using a smaller number of bits.
+Receiving stations will display the full nonstandard callsign if it
+has been received in full in the recent past.  Otherwise it will be
+displayed as < . . . >.  These restrictions are honored automatically
+by the algorithm that generates default messages for minimal QSOs.
+Except for the special cases involving /P or /R used in VHF
+contesting, _WSJT-X 2.0_ offers no support for two nonstandard
+callsigns to work each other.
+
+*JT4, JT9, JT65, and QRA64*
+
+In the 72-bit modes, compound callsigns are handled in one of two
+possible ways:
+
+.Type 1 compound callsigns

 A list of about 350 of the most common prefixes and suffixes can be
 displayed from the *Help* menu.  A single compound callsign involving
@@ -139,7 +198,7 @@ Notice that the full compound callsign is sent and received in the
 first two transmissions.  After that, the operators omit the add-on
 prefix or suffix and use the standard structured messages.

-.Type 2 Compound-Callsign Messages
+.Type 2 Compound callsigns

 Prefixes and suffixes _not_ found in the displayable short list are
 handled by using *Type 2* compound callsigns.  In this case the

doc/user_guide/en/new_features.adoc

@@ -1,33 +1,38 @@
-=== New in Version 1.9
+=== New in Version 2.0

 For quick reference, here's a short list of features and capabilities
-added to _WSJT-X_ since Version 1.8.0:
+added to _WSJT-X_ since Version 1.9.1:

-- New *FT8 DXpedition Mode* to facilitate high QSO rates in pileup
-situations
+- New FT8 and MSK144 protocols with 77-bit payloads permit these enhancements:

-- Decoding improvements for JT65 mode, including _a priori_ (AP)
-decoding when VHF/UHF/Microwave features are enabled
+* Optimized contest messages for NA VHF, EU VHF, Field Day, RTTY Roundup

-- Optional Auto-Sequencing in JT4, JT9, and JT65 when VHF/UHF/Microwave features are enabled
+* Full support for "/R" and "/P" calls in relevant contests

-- Better suppression of low-confidence false decodes generated by AP
-decoding in FT8 mode
+* New logging features for contesting

-- Improved decoding performance for WSPR mode, especially effective at LF and MF
+* Integration with N1MM+ and WriteLog for contesting

-- Minor adjustments to auto-sequencing behavior
+* IMproved support for compound and nonstandard callsigns

-- More flexible Doppler control features for EME
+* Nearly equal (or better) sensitivity compared to old protocols

-- Improved waterfall sensitivity for very weak signals
+* Lower false decode rates

-- Automatic real-time forwarding of logged information to _N1MM Logger+_
+- Improved color highlighting of received messages
+
+- Improved WSPR sensitivity

 - Expanded and improved UDP messages sent to companion programs

 - Bug fixes and other minor tweaks to user interface

+IMPORTANT: Note that for FT8 and MSK144 there is no backward
+compatibility with WSJT-X 1.9.1 and earlier.  Everyone using these
+modes should upgrade to WSJT-X 2.0 by January 1, 2019.
+
+
+
 === Documentation Conventions

 In this manual the following icons call attention to particular types
@@ -48,9 +53,9 @@ _WSJT-X_ is part of an open-source project released under the
 {gnu_gpl} (GPL). If you have programming or documentation skills or
 would like to contribute to the project in other ways, please make
 your interests known to the development team.  The project's
-source-code repository can be found at {devsvn}, and most
-communication among the developers takes place on the email reflector
-{devmail}.  Bug reports and suggestions for new features, improvements
-to the _WSJT-X_ User Guide, etc., may also be sent to the
-{wsjt_yahoo_group} email reflector.  You must join the relevant group
-before posting to either email list.
+source-code repository can be found at {devsvn}, and communication
+among the developers takes place on the email reflector {devmail}.
+Bug reports and suggestions for new features, improvements to the
+_WSJT-X_ User Guide, etc., may also be sent to the {wsjt_yahoo_group}
+email reflector.  You must join the relevant group before posting to
+either email list.

doc/user_guide/en/settings-advanced.adoc

@@ -36,9 +36,16 @@ with twice or four times the normal tone spacing.  This feature is
 intended for use with specialized LF/MF transmitters that divide
 generated frequencies by 2 or 4 as part of the transmission process.

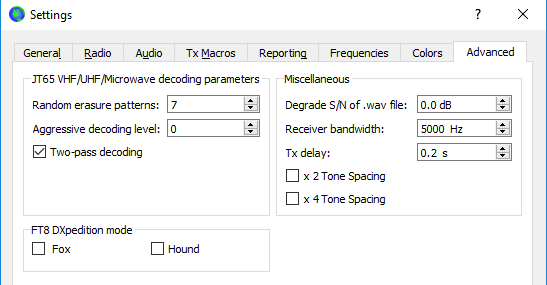

-_FT8 DXpedition Mode_

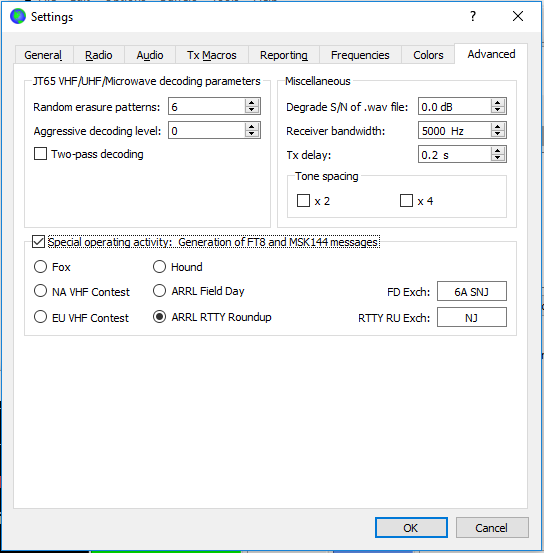

+_Special Operating Activity: Generation of FT8 and MSk144 messages_
+
+- Check this box and select the type of activity to enable
+auto-generation of special message formats for contesting and
+DXpeditions.  For *ARRL Field Day*, enter your operating Class and
+ARRL/RAC section; for *ARRL RTTY Roundup*, enter your state or province.
+Use “DX” for section or state if you are not in the US or Canada.  In
+the RTTY Roundup, Stations in Alaska and Hawaii should enter “DX”.

 - Check *Fox* if you are a DXpedition station operating in FT8
 DXpedition Mode.  Check *Hound* if you wish to make QSOs with such a
-Fox.  Be sure to read the operating instructions for  {ft8_DXped}.
+Fox.  Be sure to read the operating instructions for {ft8_DXped}.


doc/user_guide/en/settings-colors.adoc

@@ -1,5 +1,7 @@
 image::colors.png[align="center",alt="Colors Screen"]

 _WSJT-X_ uses colors to highlight decoded messages containing
-information of particular interest.  Click on one of the buttons to
-select your preferred colors for any message category.
+information of particular interest.  Check the box to select any
+that interest you.  Drag any line up or down to raise or lower
+its logical priority.  Right-click any line to select a new
+foreground or background color.

doc/user_guide/en/settings-general.adoc

@@ -17,6 +17,6 @@ NOTE: If you are using a callsign with an add-on prefix or
 suffix, or wish to work a station using such a call, be sure to read
 the section <<COMP-CALL,Compound Callsigns>>.

-NOTE: Enabling VHF/UHF/Microwave features necessarily disables the
-wideband multi-decode capability of JT65.  In most circumstances you
-should turn this feature off when operating at HF.
+NOTE: Checking *Enable VHF/UHF/Microwave features* necessarily
+disables the wideband multi-decode capability of JT65.  In most
+circumstances you should turn this feature off when operating at HF.

doc/user_guide/en/wsjtx-main.adoc

@@ -113,9 +113,12 @@ include::transceiver-setup.adoc[]
 This section introduces the basic user controls and program behavior
 of _WSJT-X_, with particular emphasis on the JT9, JT65, and FT8 modes.
 We suggest that new users should go through the full HF-oriented
-tutorial, preferably while at your radio.  Subsequent sections cover
-additional details on <<MAKE_QSOS,Making QSOs>>, <<WSPR,WSPR mode>>
-and <<VHF_AND_UP,VHF+ Features>>.
+tutorial, preferably while at your radio.  Note that as of late 2018,
+digital usage on the HF bands has mostly moved from JT65 and JT9 to FT8.  So
+you may wish to pay particular attention to *FT8*, in Section 6.6.
+
+Subsequent sections cover additional details on <<MAKE_QSOS,Making
+QSOs>>, <<WSPR,WSPR mode>> and <<VHF_AND_UP,VHF+ Features>>.

 [[TUT_MAIN]]
 === Main Window Settings
