Corrections to WSJT-X User Guide, thanks to LA6VQ. These changes should be merged to develop and to release 2.4.0.

Browse Source
This commit is contained in:
Joe Taylor 2021-05-25 10:27:30 -04:00 committed by Bill Somerville
parent c19d6225ac
commit f59a3e6b91
No known key found for this signature in database
GPG Key ID: D864B06D1E81618F
6 changed files with 4 additions and 12 deletions
Show Stats Download Patch File Download Diff File Expand all files Collapse all files

4
doc/common/links.adoc
View File

@ -94,8 +94,8 @@ d). Edit lines as needed. Keeping them in alphabetic order help see dupes.
:sourceforge-jtsdk: https://sourceforge.net/projects/jtsdk[SourceForge JTSDK]
:ubuntu_sdk: https://launchpad.net/~ubuntu-sdk-team/+archive/ppa[Ubuntu SDK Notice]
:win_openssl_packages: https://slproweb.com/products/Win32OpenSSL.html[Windows OpenSSL Packages]
:win32_openssl: https://slproweb.com/download/Win32OpenSSL_Light-1_1_1j.msi[Win32 OpenSSL Light Package]
:win64_openssl: https://slproweb.com/download/Win64OpenSSL_Light-1_1_1j.msi[Win64 OpenSSL Light Package]
:win32_openssl: https://slproweb.com/download/Win32OpenSSL_Light-1_1_1k.msi[Win32 OpenSSL Light Package]
:win64_openssl: https://slproweb.com/download/Win64OpenSSL_Light-1_1_1k.msi[Win64 OpenSSL Light Package]
:writelog: https://writelog.com/[Writelog]
:wsjtx_group: https://groups.io/g/WSJTX[WSJTX Group]
:wsjtx: https://physics.princeton.edu/pulsar/K1JT/wsjtx.html[WSJT-X]

2
doc/user_guide/en/cooperating-programs.adoc
View File

@ -28,8 +28,6 @@ logging programs, audio and visual alerts following a number of
optional alert conditions (decoding of a new DXCC, new state, etc.),
and convenient direct access to web services such as callsign lookup.
image::jtalert.png[align="left",alt="JTAlert-X image"]
* {alarmejt}, by F5JMH, is available only for Linux. The program keeps
its own logbook. It fetches contact information from _WSJT-X_ and
provides visual alerts for new DXCC entities and grid squares on the

6
doc/user_guide/en/faq.adoc
View File

@ -74,12 +74,6 @@ _Omni-Rig_ apparently has a bug that appears when you click *Test
CAT*. Forget using *Test CAT* and just click *OK*. _Omni-Rig_ then
behaves normally.
I am using _WSJT-X_ with _Ham Radio Deluxe_. All seems well until I start HRD Logbook or DM780 running in parallel; then CAT control becomes unreliable.::
You may see delays up to 20 seconds or so in frequency changes or
other radio commands, due to a bug in HRD. HRD folks are aware of the
problem, and are working to resolve it.
I am running _WSJT-X_ under Ubuntu. The program starts, but the menu bar is missing from the top of the main window and the hot-keys don't work.::
Ubuntu's new "`Unity`" desktop puts the menu for the currently active

BIN

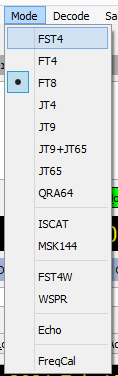

doc/user_guide/en/images/mode-menu.png
View File

Binary file not shown.
Side by Side Swipe Overlay

Before

Width:  |  Height:  |  Size: 5.0 KiB

After

Width:  |  Height:  |  Size: 3.1 KiB

2
doc/user_guide/en/protocols.adoc
View File

@ -267,7 +267,7 @@ which the probability of decoding is 50% or higher.
|===============================================================================
|Mode |FEC Type |(n,k) | Q|Modulation type|Keying rate (Baud)|Bandwidth (Hz)
|Sync Energy|Tx Duration (s)|S/N Threshold (dB)
|FST4-15 |LDPC | (240,101)| 4| 4-GFSK| 16.67 | 67.7 | 0.25| 9.6 | -20.7
|FST4-15 |LDPC | (240,101)| 4| 4-GFSK| 16.67 | 66.7 | 0.25| 9.6 | -20.7
|FST4-30 |LDPC | (240,101)| 4| 4-GFSK| 7.14 | 28.6 | 0.25| 22.4 | -24.2
|FST4-60 |LDPC | (240,101)| 4| 4-GFSK| 3.09 | 12.4 | 0.25| 51.8 | -28.1
|FST4-120 |LDPC | (240,101)| 4| 4-GFSK| 1.46 | 5.9 | 0.25| 109.3 | -31.3

2
doc/user_guide/en/wsjtx-main.adoc
View File

@ -202,7 +202,7 @@ include::wspr.adoc[]
include::controls-functions-menus.adoc[]
[[CONTROLS_MAIN]]
=== Button Row
=== Button Row
include::controls-functions-main-window.adoc[]
[[CONTROLS_LEFT]]
