Add a section on EME Tips to the User Guide.

doc/CMakeLists.txt

@@ -74,6 +74,9 @@ set (UG_IMGS
   images/decodes.png
   images/download_samples.png
   images/echo_144.png
+  images/EME_Deep_0.png
+  images/EME_Deep_1.png
+  images/EME_Deep_2.png
   images/file-menu.png
   images/FreqCal.png
   images/FreqCal_Graph.png

doc/user_guide/en/decoder_notes.adoc

@@ -1,3 +1,4 @@
+[[AP_Decoding]]
 === AP Decoding

 The _WSJT-X_ decoders for FT4, FT8, JT65, and QRA64 include optional
@@ -92,6 +93,7 @@ averaged to obtain the decode.
 |===========================================


+[[Decoded_Lines]]
 === Decoded Lines

 Displayed information accompanying decoded messages generally includes UTC,
@@ -109,10 +111,10 @@ summarized in the following Table:
 |===========================================
 |Mode    |Mode character|Sync character|End of line information
 |FT8     | ~            |      | ?   aP
-|JT4     | $            | *, # | f, fN, dNC
+|JT4     | $            | *, # | f, fN, dCN
 |JT9     | @            |      |
 |JT65    | #            |      |
-|JT65 VHF| #            | *, # | f, fN, dNC
+|JT65 VHF| #            | *, # | f, fN, dCN
 |QRA64   | :            | *    | R
 |ISCAT   |              | *    | M  N  C  T
 |MSK144  | &            |      | N  H  E

doc/user_guide/en/introduction.adoc

@@ -4,11 +4,10 @@ _WSJT-X_ is a computer program designed to facilitate basic amateur
 radio communication using very weak signals. The first four letters in
 the program name stand for "`**W**eak **S**ignal communication by
 K1**JT**,`" while the suffix "`-X`" indicates that _WSJT-X_ started as
-an e**Xt**ended (and originally e**X**perimental) branch of the
-program _WSJT_.
-
-Bill Somerville, G4WJS, and Steve Franke, K9AN, have been major
-contibutors to program development since 2013 and 2015, respectively.
+an e**Xt**ended and e**X**perimental branch of the program _WSJT_,
+first released in 2001.  Bill Somerville, G4WJS, and Steve Franke,
+K9AN, have been major contibutors to program development since 2013
+and 2015, respectively.

 _WSJT-X_ Version {VERSION_MAJOR}.{VERSION_MINOR} offers ten different
 protocols or modes: *FT4*, *FT8*, *JT4*, *JT9*, *JT65*, *QRA64*,

doc/user_guide/en/vhf-features.adoc

@@ -335,10 +335,91 @@ of the plot area on the Echo Graph window.

 image::echo_144.png[align="center",alt="Echo 144 MHz"]

-=== VHF+ Sample Files
+=== Tips for EME

-Sample recordings typical of QSOs using the VHF/UHF/Microwave modes
-and features of _WSJT-X_ are available for
-<<DOWNLOAD_SAMPLES,download>>.  New users of the VHF-and-up features
-are strongly encouraged to practice decoding the signals in these
-files.
+The following tutorial aims to familiarize you with program features
+of particular interest for EME and other extreme weak-signal
+conditions.  As a starting point, configure _WSJT-X_ as follows:
+
+.Settings | General:
+- *My Call* =  W9XYZ
+
+- Check these boxes: *Enable VHF/UHF/Microwave features*, *Single
+decode*, *Decode after EME delay*
+
+.Settings | Advanced:
+
+- *Random erasure patterns* = 7, *Aggressive decoding level* = 0,
+*Two-pass decoding* = _unchecked_, *Waterfall spectra* =  _Most sensitive_
+
+.Main window menus:
+
+- *View* = Message averaging
+
+- *Mode* = JT65
+
+- *Decode:* *Deep* selected, *Enable averaging* checked,
+  *Enable deep search* unchecked, *Enable AP* checked
+
+.Main window:
+
+- *F Tol* = 500, *Rx* 1500 *Hz*, *Submode* = B, *Sync* = 0
+
+- *DX Call*, *DX Grid:* both empty
+
+.Wide Graph:
+
+- *Bins/Pixel* = 3, *N Avg* = 10
+
+- Adjust the width of the window so that the frequency range extends
+  up to at least 2400 Hz.
+
+If you have not already done so, install the sample files available
+for <<DOWNLOAD_SAMPLES,download>>.  Select *File | Open* and navigate
+to ...\save\samples\JT65\JT65B\000000_0001.wav.
+
+The waterfall should look something like the snapshot below. A barely
+visible vertical trace appears at 1300 Hz.  This is the synchronizing
+tone of a simulated JT65B signal with SNR = -26 dB.
+
+image::EME_Deep_0.png[align="center",alt="EME_Deep_0"]
+
+The decoder recognizes the sync tone of a JT65 signal, but is unable
+to decode it, producing only this line in the _Single Period Decodes_
+panel:
+
+ 0001 -28  2.5 1300 #*
+
+Press *F6* repeatedly, to read subsequent files.  When
+five files have been read your display should look like this:
+

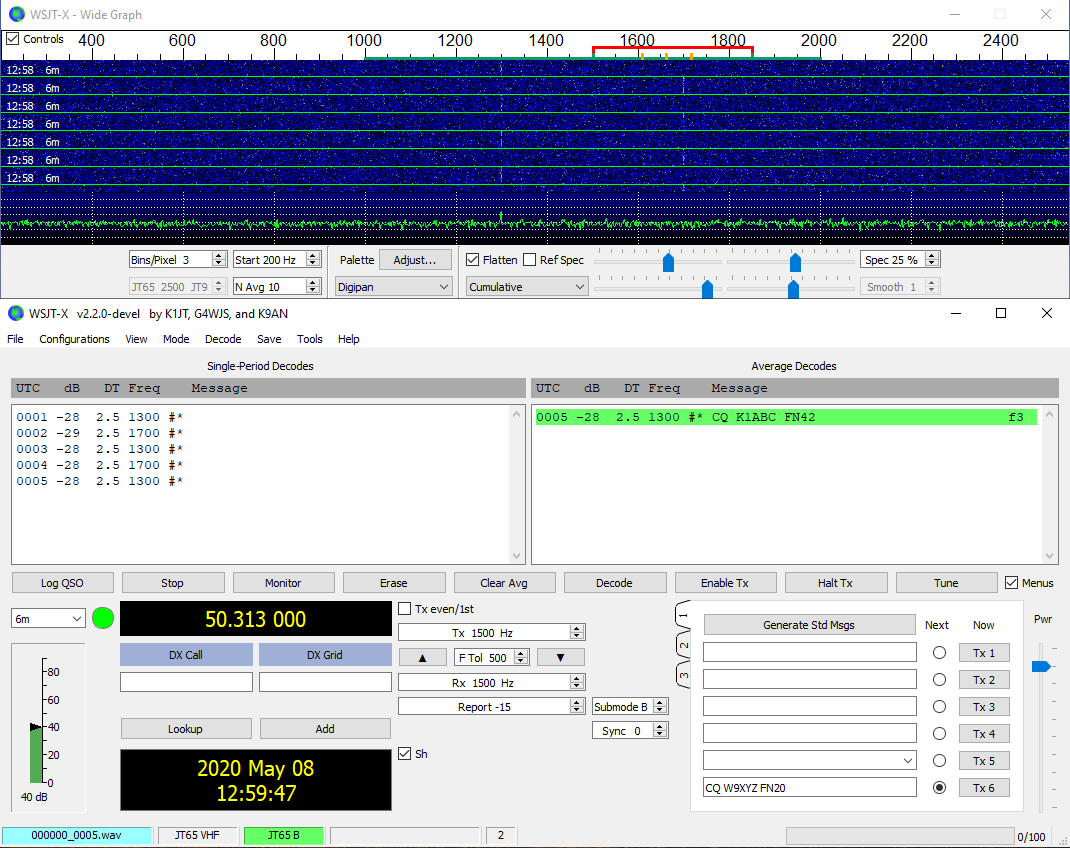

+image::EME_Deep_1.png[align="center",alt="EME_Deep_1"]
+
+The message `CQ K1ABC FN42` appears in the _Average Decodes_ panel,
+flagged with the <<Decoded_Lines,end-of line label>> `f3`.  The label
+means that decoding was accomplished with the Franke-Taylor
+algorithm, using the average or 3 transmissions.
+
+The _Message Averaging_ window now looks like this:
+
+image::EME_Deep_2.png[align="center",alt="EME_Deep_2"]
+
+The `$` symbols mark lines corresponding to transmissions used in the
+most recent attempt toward an average decode.
+
+Hit the *F6* key again to read the sixth file.  You should now see the
+message `K1ABC G4XYZ IO91` displayed in the _Average Decodes_ panel,
+again with the `f3` label.
+
+Now pretend you are K1ABC (enter `K1ABC` and `FN42` as *My Call* and
+*My Grid* on the *Settings | General* tab).  Click *Clear Avg* and
+double-click *Erase* to start with a fresh screen.  Open the files
+000000_0002.wav and 000000_0004.wav. You should now see the message
+`K1ABC G4XYZ IO91` in the _Average Decodes_ panel.  Its end-of-line
+flag `a22` indicates that this decode used *My Call* as _a priori_
+(AP) information of type 2 (see Table 1 in <<AP_Decoding,AP
+Decoding>>), and is based on the average of 2 transmissions.
+
+You might wish to experiment with other combinations of entries for
+*My Call*, *DX Call*, and *DX Grid*, and with toggling the various
+options of the *Decode* menu on and off.
